Dashcam Installation Steps for Touring Vehicles
A dashcam is most useful when it is fitted before the journey that goes wrong. Whether you are towing a caravan, driving a motorhome, or heading away with a roof tent and 270-degree awning, clear footage can help document an incident on the road or damage while parked. These dashcam installation steps focus on a tidy, dependable setup that does not obstruct your view or leave cables trailing across the cabin.
A basic plug-in installation suits many drivers. Hardwiring is often the better choice for regular touring vehicles, particularly if you want parking recording. The right option depends on how often you use the vehicle, whether it is under warranty, and how comfortable you are working around vehicle electrics.
Dashcam Installation Steps Before You Start
Start by checking what is in the box. Most dashcams include a front camera, windscreen mount, power cable, adhesive pad, and a 12V accessory socket adapter. A dual-camera system will also have a rear camera and a longer connecting cable. You may need a suitable memory card, usually a high-endurance microSD card designed for constant recording.

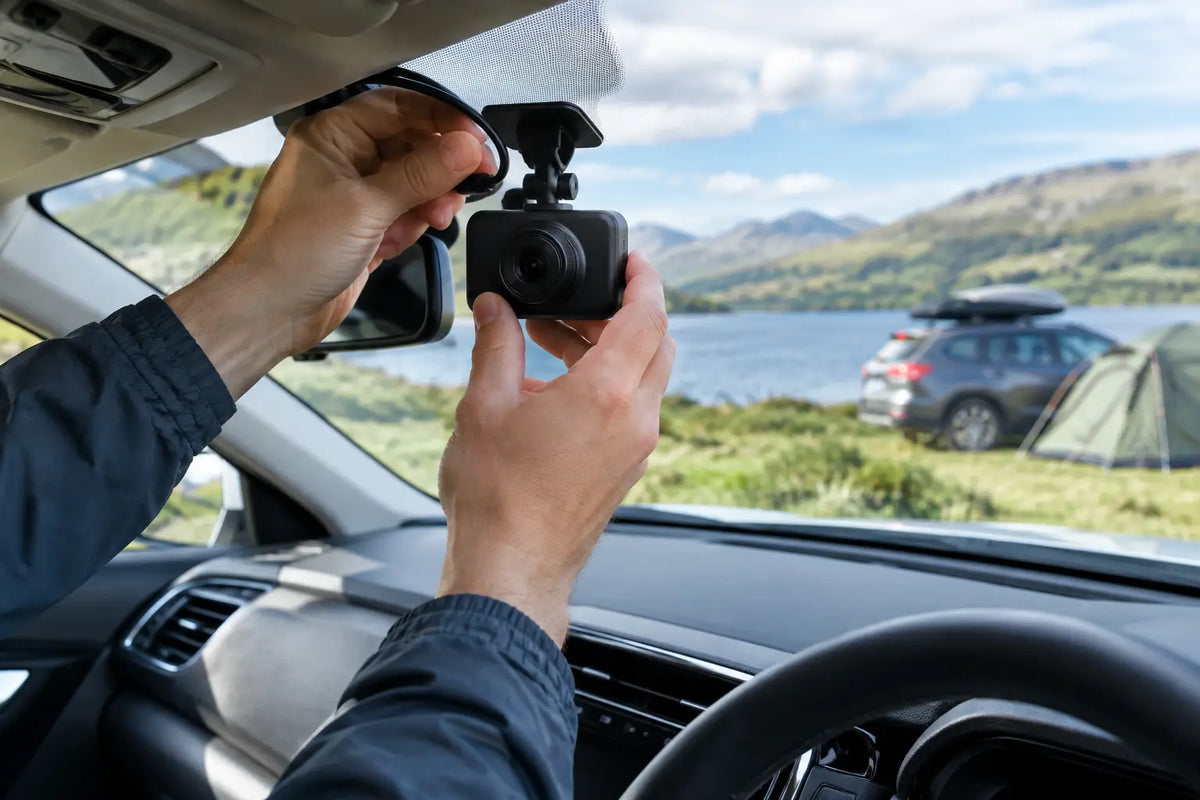

Choose where the camera will sit before removing any adhesive backing. For a front camera, the usual position is high on the windshield, behind or close to the rearview mirror. This keeps it within the windshield wiper sweep while staying out of your normal line of sight. Do not mount it low on the glass, where reflections from the dashboard can affect footage.
In a motorhome or vehicle with a steep, upright windshield, take extra time with the angle. The camera needs to capture the road ahead rather than too much dashboard, sky, or the vehicle hood. If you use a sunshade or have an integrated sensor housing behind the mirror, make sure the dashcam mount will not interfere with it.
Clean the chosen area with an alcohol wipe and let it dry fully. Adhesive mounts need a clean, warm surface to hold properly. Suction mounts are easier to move, but adhesive mounts are generally more secure on rough roads and during long-distance trips.
Fit the Front Camera and Set the View
Attach the mount, then fit the dashcam and connect its power lead. Before hiding any cable, turn the camera on and use its screen or companion app to check the framing. Aim for a balanced view with a small section of the vehicle hood at the bottom and the road taking up most of the image.
Set the date, time, and correct time zone. This sounds basic, but incorrect timestamps can reduce the usefulness of footage after an incident. If the camera has GPS, decide whether you want speed and location data stamped on recordings. This can be useful for confirming where an incident occurred, though some drivers prefer to keep speed display disabled.
Set the recording resolution at the highest level your memory card and camera support reliably. Higher resolution can make number plates clearer, but it also fills storage faster. Loop recording solves this by overwriting the oldest unlocked footage. Check that the G-sensor sensitivity is not set too high, otherwise potholes, rough tracks, and campsite access roads may create a large number of protected clips.
Route the Power Cable Neatly
For a simple installation, plug the power cable into the vehicle's 12V socket and route it around the windshield edge. Keep the wire tucked behind trim where possible. A trim tool is useful, but gentle pressure with your fingers is often enough.
Run the cable along the headliner and down the passenger side of the vehicle. Avoid routing it across the steering wheel area, pedals, gear selector, or any controls. On most vehicles, the passenger-side route also keeps the wire away from the driver and provides a cleaner finish.
Take particular care around the A-pillar, which is the trim running down either side of the windshield. Many vehicles have curtain airbags behind this trim. Do not push a cable into the path of an airbag or wrap it around any airbag component. The cable should sit alongside the existing wiring route or behind trim only where it will not restrict airbag deployment. If you are unsure, a professional installation is the sensible choice.
For vehicles used with a roof tent or awning, a tidy interior cable run matters more than it might on a short commuter trip. You may be opening doors repeatedly at camp, loading recovery gear, moving bedding, or packing the vehicle for several days away. Loose wires quickly become an annoyance and can be damaged by daily use.
Add a Rear Camera If You Need One
A rear camera gives useful coverage for impacts from behind and can be especially worthwhile on an SUV, estate vehicle, camper van, or motorhome. On a car, the rear unit is usually mounted high on the rear window, facing straight back through the glass.
The cable from a dual dashcam commonly runs from the front unit, along the headliner, and toward the rear hatch or tailgate. Leave enough slack at hinges and flexible rubber boots so the cable is not pulled tight every time the rear door opens. Do not force cable through a hatch seal if it will pinch or crush it.
A rear-facing camera fitted inside the cabin is often simpler and better protected from weather. An external rear camera may be more suitable for some motorhomes, vans, or trailers, but it needs careful sealing and a route that protects the cable from water, road spray, and movement. For a caravan or trailer, consider whether you want recording from the tow vehicle, a dedicated reversing camera, or both. They serve different purposes.
Hardwire for Parking Mode With Care
Parking mode allows a dashcam to monitor the vehicle while the ignition is off. Depending on the camera, it may record continuously at low power, wake when movement is detected, or save footage when it senses an impact. This is useful when a vehicle is left at a trailhead, hotel, ferry terminal, campground, or street parking area.
Hardwiring normally uses a dedicated kit connected at the fuse box. The kit takes power from an ignition-switched circuit and, for parking mode, a permanent live circuit. It should also include low-voltage protection, which turns the camera off before it drains the starter battery too far.
The trade-off is straightforward. Parking mode gives more coverage, but it places an ongoing demand on the battery. A vehicle driven frequently will usually cope well when the voltage cutoff is correctly set. A caravan tow vehicle, seasonal motorhome, or second car left standing for long periods may need a higher cutoff setting, shorter parking-mode duration, or a separate battery solution.
Do not guess which fuses to use. Vehicle fuse layouts differ, and modern electrical systems can be sensitive. A professional installer can identify appropriate circuits, fit the hardwire kit cleanly, and make sure no safety systems are affected. This is also worth considering if your vehicle is leased, under warranty, or has complex trim and airbag layouts.
Test the Camera Before Your Next Trip
Once everything is fitted, take a short drive and review the video on the camera or app. Check that the image is level, number plates are reasonably clear in daylight, and the windshield does not create excessive glare. Confirm that the rear camera is recording if fitted.
Then test the basics: ignition start-up, automatic recording, loop recording, and file playback. If you have enabled parking mode, turn off the ignition and confirm the camera enters the intended mode. Review footage again after a few hours to make sure the battery protection setting is working as expected.
Memory cards deserve regular attention. Format the card through the dashcam menu at the interval recommended by the camera manufacturer, and replace it if recordings become corrupted or the camera repeatedly asks for formatting. Constant recording is demanding, so a cheap standard card can become the weak point in an otherwise good setup.
A professionally fitted dashcam is not just a cable hidden behind trim. It is a camera positioned for useful evidence, powered safely, and tested before you trust it on a long journey. If your vehicle carries expensive touring equipment or serves as your home away from home, taking the extra time to get those details right is worthwhile.
